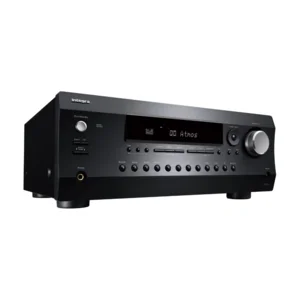

Integra DRX 2.4

Prepare for the 8K Home Theater Revolution
High-spec HDMI® will unlock exciting features for gamers and film lovers in your family, including 8K video passthrough, HDR10+, and low-latency gameplay. Enjoy DTS: X® and Dolby Atmos® 3D soundtracks with refined Integra power and convenient voice-controllable multi-room audio.

5.1.2-ch Dolby Atmos® and DTS: X® playback
Dolby Atmos Height Virtualization
Dolby Surround® and DTS® Neural:X upmixing
HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
Inputs 1-3 support HDMI 2.1 8K/60AB and 4K/120AB. Inputs 4-6 support up HDMI 2.0b 4K/60. Main+Sub output supports simultaneous 8K/60AB and 4K/120AB, and Main+Zone 2 supports 8K/60AB and 4K/60 respectively.
HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out, and Zone 3 pre-out
Share any MAIN audio source to a wireless headphone dock via Zone B line-out
Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers
Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

80 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Low-impedance amp system with 4-ohm speaker-driving capability
Massive custom transformer and hand-selected audio parts
Non-phase-shift amp-circuit topology for clear and cohesive sound
Optimum Gain Volume Circuitry
Precision DAC supports 192 kHz/24-bit multichannel D/A conversion
VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)
PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
Front L/R speaker bi-amping capability in 5.2-ch configuration
Tone controls (bass/treble) for Front L/R channels

Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO) Wi-Fi®
Supports Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer
Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode
Works with Alexa supporting multi-room music
Works with Hey Google and Chromecast built-in™
AirPlay 2 multi-room audio with Siri voice control
DTS Play-Fi® multi-room audio via Integra Music Control App
Compatible with the Integra Remote app for iPad®, iPhone®, and Android™
Roon Tested certified
Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz*15, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit*16)

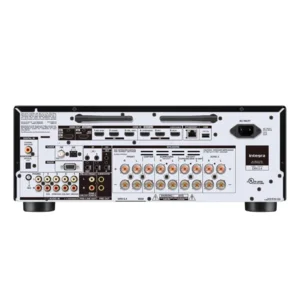

6 HDMI inputs, Main Out (eARC), Sub/Zone 2 Out
2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
4 gold-plated analog RCA audio inputs (rear, assignable)
Gold-plated phono input and built-in equalizer (MM) for turntable connection
USB input (5 V/1 A) for audio playback (rear)
Gold-plated 1/8˝ (3.5 mm) AccuEQ setup mic input (front)
Gold-plated 1/4˝ (6.35 mm) headphone jack
9 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2)
Dedicated gold-plated Zone 2 speaker outputs
Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA)
2 subwoofer pre-outs
Ethernet LAN terminal

Ethernet supports setup and IP control via a web browser
Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation and other major control systems
Works with OvrC Pro and Domotz Remote Monitoring systems
RS-232 input for external control and automation
2 IR inputs and 1 output
3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)
Dealer-settings memory storage and recall function
AC inlet for detachable IEC power cable
Optional rack-mount kit (IRK-155-3D)

Power Output Front L/R: 80 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC, 170 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven,
Dynamic Power: 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front)
Input Sensitivity and Impedance: 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)
THD+N (Total Harmonic Distortion + Noise) : 0.08% (20 Hz–20 kHz, Half Power)
Rated RCA Output Level and Impedance: 1 V rms/470 Ohms (Pre-out/Subwoofer Pre-out) 200 mV rms/470 k-Ohms (Zone B Line-out)
Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio: 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)
Speaker Impedance: 4 Ohms–16 Ohms

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

Power Supply: AC 120 V~, 60 Hz
Power Consumption: 460 W
Standby Power Consumption: 0.1 W
Dimensions (W x H x D): 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm)
Weight: 21.2 lbs. (9.6 kg)
Carton
Dimensions (W x H x D): 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm)
Weight: 21.2 lbs. (9.6 kg)

Aluminum front panel and volume knob
One-touch volume memory preset assignment to individual A/V inputs via front panel
OSD function displays A/V input signal data, output signal/settings data, and network information
Dolby® TrueHD and DTS-HD Master Audio® decoding
Advanced Music Optimizer™ improves compressed audio playback quality
High-definition GUI over HDMI
4K to 8K, 1080p to 8K/4K video upscaling via HDMI
Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*17)
Sleep timer, HDMI passthrough, and network standby
40 FM/AM/internet radio presets with station-naming (10 characters)
3-Mode display dimmer (Normal/Dim/Dimmer)
