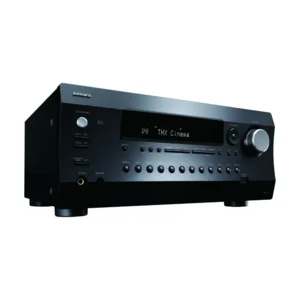

Integra DRX 5.4

Welcome Extraordinary into Your Home
Theater-reference Dolby Atmos® or DTS: X® sound through up to 7.2.4 channels complements 8K HDR video passthrough. Connect 5.2.4-channel speakers and Zone 2 speakers and switch between 5.2.4-ch and 5.2.2-ch + Zone 2 playback, or use 5 GHz/2.4 GHz Wi-Fi® and your voice to control music all around your home.

5.2.4/7.2.2-ch Dolby Atmos® and DTS: X® playback
Dolby Atmos Height Virtualization
Dolby Surround® and DTS® Neural: X upmixing
HDMI® inputs 1-3 support up to 8K/60AB and 4K/120AB video passthrough. HDMI® inputs 4-6 support up to 8K/60B and 4K/120AB video passthrough. HDMI® inputs 1-6 support HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
Front HDMI® input supports up to 4K/60 and HDMI 2.0 features.
11.2-ch pre-outs and processing for 7.2.4-ch
HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
Separate Zone 2 speaker outputs enable 5.2.4-ch + Zone 2 speaker connection, 5.2.4-ch playback switching to 5.2.2-ch + Zone 2 playback
Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out and Zone 3 pre-out
Share any MAIN audio source to a wireless headphone dock via Zone B line-out
Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
Dirac Live® Room Correction supports multi-point acoustic calibration
AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers
Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

120 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC), 250 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven
THX® Certified Select for Theater Reference Sound
IMAX® Enhanced certified for IMAX® digital remasters
Low-impedance amp system with 4-ohm speaker-driving capability
Massive custom transformer and customized 15,000 μF capacitors
Copper bus-bar connects capacitors to amplifiers
Non-phase-shift amp-circuit topology, audio-grade parts, and separate digital/analog circuit boards
Extruded anti-resonant aluminum heat-sink
Precision DAC supports 192 kHz/24-bit multichannel D/A conversion
VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)
PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
Front L/R speaker bi-amping capability in 5.2/7.2/5.2.2-ch configuration
Independent tone controls (bass/treble) for all channels

Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO) Wi-Fi®
Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer
Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode
Works with Alexa supporting multi-room music
Works with Hey Google and Chromecast built-in™
AirPlay 2 multi-room audio with Siri voice control
DTS Play-Fi® multi-room audio via Integra Music Control App
Compatible with the Integra Remote app for iPad®, iPhone®, and Android™
Roon Tested certified
Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit)

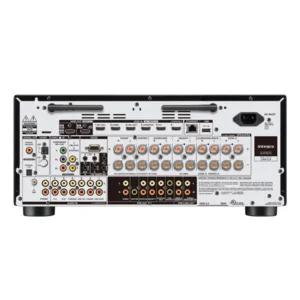

7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out
2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
6 gold-plated analog audio inputs (rear, assignable)
Gold-plated phono input and built-in equalizer (MM) for turntable connection
USB input (5 V/1 A) for audio playback (rear)
1/8˝ (3.5 mm) Dirac Live/AccuEQ Advance setup mic input (front)
2 gold-plated composite video inputs (rear, assignable)
1 gold-plated component video input (rear, assignable)
1/4˝ (6.3 mm) gold-plated headphone jack
11 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2 and Zone 3)
Dedicated gold-plated Zone 2 and Zone 3 speaker outputs
Gold-plated 11.2-ch pre-outs
Gold-plated Zone 2 pre-out /Zone B line-out and Zone 3 pre-out (analog RCA)
Ethernet LAN terminal

Ethernet supports setup and IP control via a web browser
Works with Crestron®, Control4®, Savant, URC, ELAN, RTI and other major control systems
Works with OvrC Pro and Domotz Remote Monitoring systems
RS-232 input for external control and automation
2 IR inputs and 1 output
3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)
Dealer-settings memory storage and recall function
AC inlet for detachable IEC power cable
Optional rack-mount kit (IRK-180-4C)

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Integra AV receiver. Klipsch and Integra teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS* application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience. Now, you will get a more accurate measurement of the positions of your Surround Sound system to be more precise and balanced to provide a better result with increased the upper limit of delay time from 20 milliseconds to 50 milliseconds.

*Device must be connected to the internet and the same network as your AVR.

Aluminum front panel and volume knob
Front-to-Surround/Height speaker switching in Stereo Assign Mode
One-touch volume memory preset assignment to individual A/V inputs via front panel
OSD function displays A/V input signal data, output signal/settings data, and network information
Dolby® TrueHD and DTS-HD Master Audio® decoding
THX® listening modes for films, games, and music
Advanced Music Optimizer™ improves compressed audio playback quality
High-definition GUI over HDMI
Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI
Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz)
Sleep timer, HDMI passthrough, and network standby
40 FM/AM/internet radio presets with station-naming (10 characters)
3-Mode display dimmer (Normal/Dim/Dimmer)

Power Supply: AC 120 V~, 60 Hz
Power Consumption: 850 W
Standby Power Consumption: 0.1 W
Dimensions (W x H x D): 17 1/8˝ x 7 13/16˝ x 15 5/16˝ (435 x 198 x 388.5 mm)
Weight: 30.9 lbs. (14.0 kg)
Carton Dimensions (W x H x D): 22 1/16˝ x 12 5/8˝ x 18 3/16˝ (560 x 320 x 462 mm)
Weight: 37.5 lbs. (17.0 kg)
