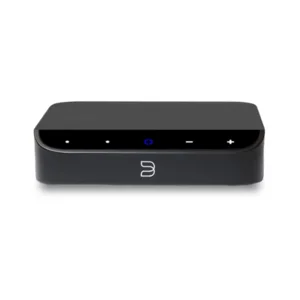

Bluesound NODE NANO

Wireless Music Streamer

Upgrade your stereo system effortlessly with the NODE NANO. Just connect to Wi-Fi and start streaming music, radio stations. Experience audiophile-grade sound with the industry-leading ESS SABRE® DAC, supporting audio up to 24-bit/192kHz for exceptional clarity.

ESS ES9039Q2M SABRE® DAC

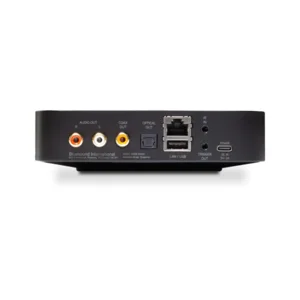

Stereo RCA audio output
Optical, coaxial, and USB audio outputs
Two programmable quick-touch presets
DSD playback
Additional streaming via AirPlay 2, Spotify Connect and TIDAL Connect
Roon Ready
Two-way aptX™ Adaptive* Bluetooth

*Available via future software update

Specifications:

Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Native Sampling Rates: up to 192 kHz
DAC: ESS ES9039Q2M
Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Bit Depth: 16-24
Signal-to-Noise Ratio: -118 dB
DSD Support: DSD256
Audio Controls & EQ: BluOS Controller App
Distortion: THD+N, 0.0007%

Operating System: BluOS
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
App Controller Operating System: iOS, Android, Windows, macOS
Album Art Supported: JPG, PNG
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Processor ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Music Services & Internet Radio: 23+ Music Services; Internet Radio
Voice Control Integrations: Amazon Alexa Skills

Power Supply: USB-C (5V-2A)
Optical/Analog Input: IR Sensor Built In - front panel with IR Remote Learning
Coaxial Output: RCA
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
IR Input: 3.5mm Jack
Optical Output: TOSLINK digital optical
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Trigger Out: 12 Volt
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Headphone Output: Bluetooth
Bluetooth Connectivity: Two-Way (transmit & receive)
Subwoofer Output: Wireless to PULSE SUB+

Status Indicator: LED
Volume Control Buttons: Touch LED
Play/Pause Button: Touch LED
Preset Buttons: Touch LED x 2

Finish: Black: Matte Satin Paint
Version: N030
Product Weight: 0.57kg / 1.26lbs
Mounting: Bottom-panel keyhole slot
Product Dimensions: 143 x 36 x 143mm (W x H x D)

Included Accessories:

• USB Power Supply
• 4x International Plug Adapter
• USB-C Power Cable
• Stereo RCA to RCA Cable
• Ethernet Cable
• Safety/Warranty Guide
• Quick Setup Guide
