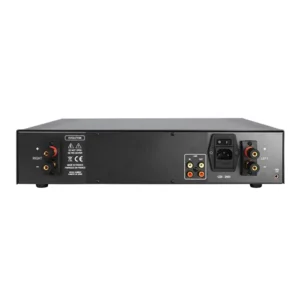

Atoll AM200 EVO

The AM200 Evolution block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).

8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
1.5 mm steel chassis.
Two 340 VA toroidal transformers each.
High-quality and shielded MKP link capacitors.
Bipolar transistor and LED current sources to ensure perfect voltage stability.
Discrete balanced audio stages.
MOS-FET power transistor.
Class A/B output stage biasing.
Custom PCB with nickel/gold finish.
Mono block bridgeable.
New tellurium copper speaker outputs.
12V Trigger input.

TECHNICAL DATA

Power Wrms/channel/8Ω: 120 W
Power Wrms/channel/4Ω: 200 W
Pulse power/channel: 300 W
Power supply: 2×340 VA
Total capacitive: 59,420 µF
Number of inputs: 1 RCA
Consumption with switch off: 0 W
Consumption in operation: 20 W – 600 W
Input impedance: 220 kΩ
Sensitivity: 1.77 V
Signal/noise ratio: 100 dB
Distortion at 1 kHz: 0.05%
Bandwidth: 5 Hz – 200 kHz
Rise time: 1.5 µs
Dimensions: 440×295×95 mm
Weight: 12 kg
