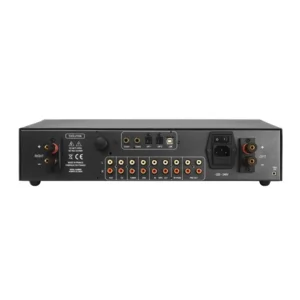

Atoll IN200 EVO

The integrated amp-preamp IN200 Evolution is manufactured with the greatest care: We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.

8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
1.5 mm steel chassis.
2×120 Wrms / 8Ω power.
Two 340 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
High-quality and shielded MKP coupling capacitors.
Bipolar transistor and LED current sources to ensure perfect voltage stability.
New tellurium copper speaker outputs.
Dual push-pull MOS-FET power stage.
Class A/B output stage biasing.
Possibility of choosing standby mode: Low consumption or preheating.
Two volume attenuators: 1 per channel to maintain the dual mono architecture.
Possibility to manage balance and memorize it.
Possibility to rename the inputs.
High contrast OLED display (on or off mode after 5 seconds of inactivity).
Double-sided printed circuits with nickel/gold finish.
ATOLL global remote control supplied as standard.
The IN200 EVO can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).

TECHNICAL DATA:

Power in Wrms/channel/8Ω (230v): 120 W
Power in Wrms/channel/4Ω (230v): 200 W
Power supply: 2×340 VA + 10 VA
Total capacitive: 59,220 µF
Number of inputs: 5+1 BY-PASS
Power consumption with switch off: 0 W
Power consumption in standby (low consumption):
