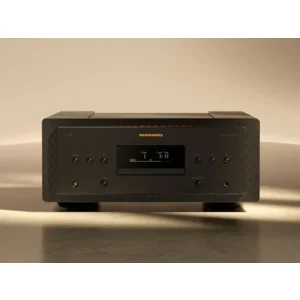

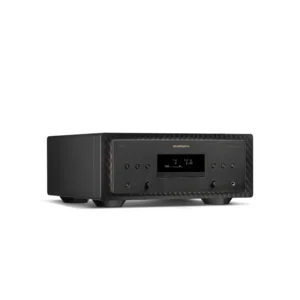

Marantz SACD 10

In combinatie met het volledig door Marantz ontworpen en gebouwde SACDM-3 schijftransport maakt dit hem de beste audio-cd-speler in zijn klasse.

Marantz SACDM-3 transport
Ondersteuning voor DSD 256 en PCM 384 / 32
Hoofdtelefoonversterker
Twee voedingen met ringkern transformatoren
OLED-scherm

General
Unit (W × H × D mm)
440 × 192 × 442
Cabinet Size
440 × 192 × 422
Net weight
33.0kg
Packaging Dimensions (W × H × D mm)
600 × 379 × 540
Packaging gross weight
38.4kg
Carton Color
1 Color (Material color: Brown Printing: Black)
Panel Color
Black / Marantz Champagne
Front (Center) Pane
Aluminum
Back-shell
Aluminum
Front panel illumination
Yes (All sides, Dimmer)
Side cover
Aluminum (Thickness: Max 15.8mm)
Top cover
Aluminum (Thickness: 12mm)
Bottom Layer / Bottom plate
Triple layer copper-plated
Foot
Solid aluminum with Copper
Audio
Frequency Response
SACD: 2Hz–50kHz (-3dB)
CD: 2Hz–20kHz (±1.0dB)
Harmonic distortion
SACD: 0.0004%
CD: 0.0015%
S/N
SACD: 118dB
CD: 116dB
Dynamic range
SACD: 112dB
CD: 98dB
Line Output Leve
UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms
Headphone Output Level
130mW / 32 ohms
Power Consumption
55W
Less than 0.3W (at Standby)
Audio Feature
Output Circuit
New HDAM
Power Transformer
Toroidal
Headphone Circuit
Discrete
H/P Amp Gain Setting
Yes (Low / Mid / High)
H/P On.Off Setting
H/P Off automatically, when in use
DAC Circuit
New MMM-Conversion
Dither
MMM-Stream (Dither 1, 2, Off)
Noise Shaper
MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
Digital Filter
MMM-Stream
Filter 1, 2 Selectable
Jitter Reducer
Yes
DAC Master Clock Design (No Support for Network Playback)
Yes
Asynchronous mode (for USB-B input)
Yes
Isolator (for USB-B input)
Yes (Complete Isolation System Duo)

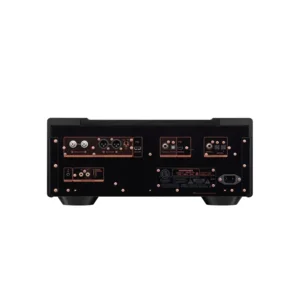

Connectivity
Fixed Analog Output (RCA)
Cinch × 1
Thick nickel plated Maching copper L/R independent terminals
Fixed Balanced XLR Output
1
Optical input / output (Maximum Support)
2/1
4.1 kHz - 192 kHz
Coaxial input / output (Maximum Support)
2/1
4.1 kHz - 192 kHz
Headphone Output
Yes (φ6.3 x 1)
Remote Control Bus Termina
Yes
Remote Internal / External Switch
Yes
AC Inlet
Yes
Accessory Box
Yes
Remote Controller
RC004PMND
Battery
Yes (AAA ×2)
Power Cord
Yes (ALL region : Audio Grade : OFC)
Other
Stereo RCA Cable ×1
emote connector cable ×1
oA card
