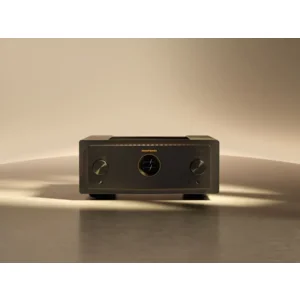

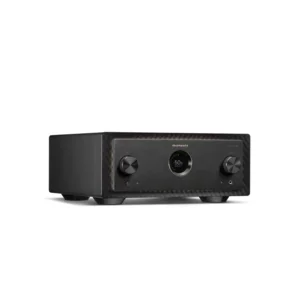

Marantz Model 10

MODEL 10 is de nieuwe referentie voor het ontwerp van versterkers. Met zijn nieuw ontworpen dual-mono symmetrische versterkertopologie is dit de krachtigste, best presterende Marantz-versterker ooit.

2 kanalen
250 watt per kanaal
Volledig nieuwe Marantz SMPS
Volledig gebalanceerde dubbele monoversterker
Phono MM/MC
Verkoperd chassis

General
Unit (W × H × D mm)
440 × 192 × 473
Cabinet Size
440 × 192 × 422
Net weight
33.7kg
Packaging Dimensions (W × H × D mm)
600 × 379 × 540
Packaging gross weight
39.0kg
Carton Color
1 Color (Material color: Brown Printing: Black)
Panel Color
Black / Marantz Champagne
Front (Center) Panel
Anodized machined aluminum
Back-shell
AAnodized machined aluminum
Front panel illumination
Yes (All sides, Dimmer)
Side cover
Aluminum (Thickness: Max 15.8mm)
Top cover
Aluminum (Thickness: 6mm)
Top cover (Centor) ventilation hole material
Stainless mesh
Interior ilumination
Yes, dimmable
Rear Panel
Copper Plated
Chassis Material
Copper Plated
Bottom Layer / Bottom plate
Triple layer Copper plated
Front panel illumination
Yes (All sides, Dimmer)
Volume Knob
Solid aluminum (Bearing construction)
Input Selector
Solid aluminum (Bearing construction)
Foot
Solid Alminum Copper plated (H: 18.5mm)
Heatsink for Power Amplifier
Extruded Aluminum
Audio
Rated Output Power
250W + 250W
(8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W
(4ohm,20Hz-20kHz,THD 0.05 %)
Speaker Impedance
4~16ohm
Frequency Response
5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion
0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD)
Damping Factor
500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono input
MM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm
RIAA Deviation
20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 80mV
MC : 8mV
Input Sensitivity: CD/LINE/RECORDER
350 mV/41kohm (Unbalanced)
700 mV/36kohm
Input Sensitivity: Power Amp input
Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
SN Ratio
PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
Headphone Output Level
130mW / 32 ohms
Tone Control
BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
Power Consumption
270W
0.1W (at Standby)
Audio/ Video
Phono Input
Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ

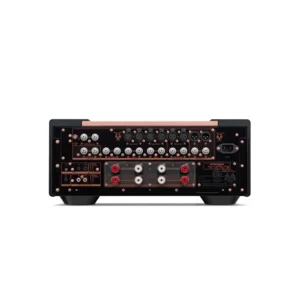

Analog Input (include Phono) / REC Out (RCA)
4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)
Balanced XLR input
2
Power Amp Direct
Yes [RCA (Thick nickel plated independent terminals) / XLR]
Pre out
Yes [RCA (Thick nickel plated independent terminals) / XLR]
2 sets of Speaker Output
Yes (Bi-wiring)
Speaker Terminal
Marantz Original SPKT-100+
2 (High quality and high-purity copper plated)
Headphone Output
1
(Turns off the speaker automatically when headphone is inserted)
Control/ Other
Remote Control Bus Terminal
Yes (RC-5 In / Out)
Remote Internal / External Switch
Yes
Flasher Input
Yes
AC Inlet
Yes
Other
F.C.B.S.
(Floating Control Bus System)
Remote Controller
10 series Universal Remote control
Unit control (Button)
Tact Switch : 1
POWER
Unit control (Knob)
2
VOLUME, INPUT SELECTOR
LED
POWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White

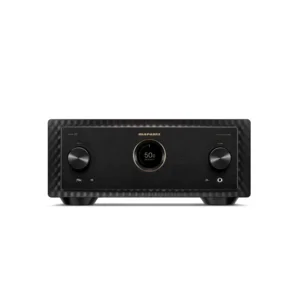

Front Panel Display
New HD TFT Color Display
Dimmer for Front Display
20 steps
Level meter
Yes (HD Display)
Volume Display
-infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable
Last Function Memory
Yes
Auto Standby Mode
Yes
Remote Controller
RC004PMND
Battery
Yes (AAA ×2)
Power Cord
Yes
(ALL region / Audio Grade / OFC)
Other
CoA card
