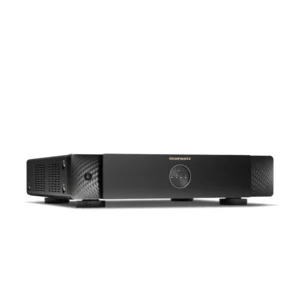

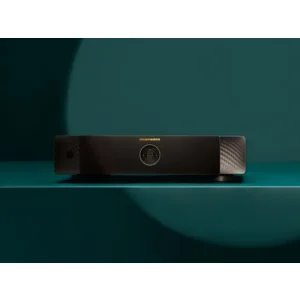

Marantz Model M4

De MODEL M4 is een multiroom-versterker voor rekmontage waarmee je het superieure geluid waarom Marantz bekend staat vanaf een breed scala aan gestreamde muziekdiensten, lokale muziekbronnen en je tv in vier zones kunt laten horen.

Vervaardigd in Shirakawa, Japan
8 kanalen
100W per kanaal
Vier zones
Dolby Digital
HEOS Built-in

Amplifier
Power Amplifier Rated output & THD (8 ohm)
8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm)
8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
Frequency Response
20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance
4 – 16 Ω/ohms

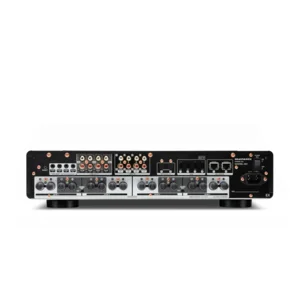

Audio Inputs / Outputs
Loudspeaker Binding Posts
4-way binding posts
Digital Inputs
TOSLINK (2)
Analog Inputs
RCA L/R (4)
Preouts
RCA L/R (4)
Subwoofer Out
RCA Mono (4) (selectable)
Inputs Audio Options
Channel Assignments
Stereo (Default), Dual Mono
Volume Limit
80-100%
Balance
-15dB to +15dB
Adjustable High Pass / Low Pass Filters
40-250 Hz / 40-120 Hz
EQ
Bass, Treble -5dB to +5dB
Sound Modes
Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping
Yes
Audio Format Support
Decoding
Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM
Yes / Yes
Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive
N/A
Bluetooth Trasmit
N/A
AirPlay
AirPlay 2
Spotify
Spotify Connect
Music Services and Sources
Music Services Supported ((HEOS®, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device
Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage)
Network share
USB Storage Device Playback
Yes (4) (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity
Ethernet (2)
Wireless Connectivity
N/A
IR Input
N/A
IR Learning
N/A
Control System Compatibility via TCP/IP
Creston, Control4, AMX
HEOS® App
iOS, Android, Kindle Fire
Trigger Output DC 12V
Yes (4)
General
Product Color
Black
User Interface
Reset button, Front power button, Rear power switch

Dimensions (W x D x H) mm
415 x 106 x 442
