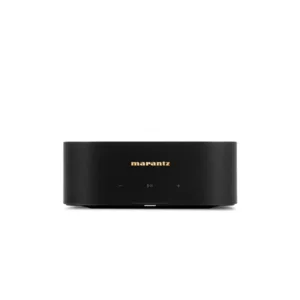

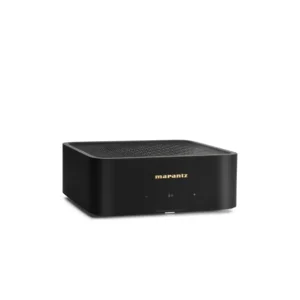

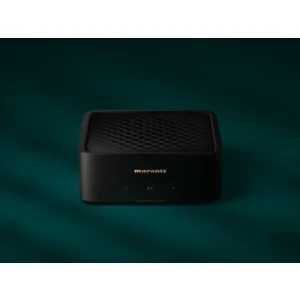

Marantz Model M1

De draadloze streamingversterker MODEL M1 is ontworpen voor hoge prestaties en veelzijdige functionaliteit. Geniet van je favoriete muziek of tv-programma's, naadloos vanaf één elegant, compact apparaat.

Vervaardigd in Shirakawa, Japan
2.1-kanaals
100W per kanaal
HDMI eARC
Dolby Digital+
HEOS Built-in

Amplifier
Power Amplifier Rated output & THD (8 ohm)
100 W+100 W (8 Ω, THD 0.05%)
Power Amplifier Rated output & THD (4ohm)
125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
Frequency Response
20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance
4 – 16 Ω/ohms
Audio Inputs / Outputs
Loudspeaker Binding Posts
4-way binding posts
Digital Inputs
HDMI (eARC), TOSLINK
Analog Inputs
RCA L/R
Subwoofer Out
RCA Mono
Inputs Audio Options
Channel Assignments
Stereo (Default), Dual Mono
Volume Limit
80-100%
Balance
-15dB to +15dB
Adjustable High Pass / Low Pass Filters
40-250 Hz / 40-120 Hz
EQ
Bass, Treble -5dB to +5dB
Sound Modes
Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping
Yes
Audio Format Support
Decoding
Dolby Digital +, Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM
Yes / Yes
Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive
BT 4.2.X
Bluetooth Trasmit
No
AirPlay
AirPlay 2
Spotify
Spotify Connect
Music Services and Sources
Music Services Supported (HEOS®, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device
Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage)
Network share
USB Storage Device Playback
Yes (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity
Ethernet
Wireless Connectivity
Dual band, 802.11 a/b/g/n/ac
IR Input
3.5mm
IR Learning
Yes
Control System Compatibility via TCP/IP
Creston, Control4, AMX
HEOS® App
iOS, Android, Kindle Fire
General
Product Color
Black
User Interface
Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)

Dimensions (W x D x H) mm
239 x 84 x 217

Weight (kg)
2.2
