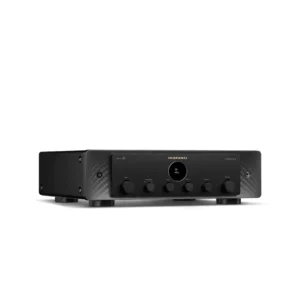

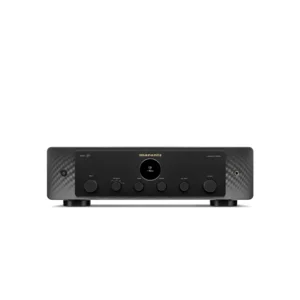

Marantz Model 50 Black

Striking a perfect balance between power and elegance, the Marantz MODEL 50 is the ideal integrated amplifier to reveal the warmth, spaciousness, detail,
and richness of each recording.
MODEL 50 Pure Analog Stereo Integrated Amplifier
• No digital audio circuitry simplifies use and reduces
audible interference.
• 70 watts per channel and Current Feedback Class A/B
amplification maximizes speaker capability.
• A full suite of inputs and outputs for your sources, subwoofer,
and even an extra power amplifier.
• Unique HDAM SA-3 discrete amplifier circuitry outperforms ICs
used in competing amplifiers.
• Hear details in your vinyl records like never before using the
Marantz Musical Phono EQ gain stage.
• Iconic Marantz porthole display is used for setup and to easily
see your volume level.
• Meticulously crafted and robustly built, MODEL 50 design and
style matches the most musical sound.

Features
Channels 2
Current Feedback Topology Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium No / Yes / No
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
HDAM version SA2, SA3
Power Transformer: Toroidal / El Yes / No
High Grade Audio Components Yes
Customized Components Yes
Symmetric PCB Layout Yes
Aluminium extrusion heat sink Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

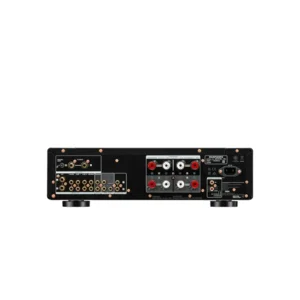

Inputs/Outputs
Audio Inputs 6
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
Phono Input: MM / MC Yes / No
Audio Outputs 1
Balanced In / Out No / No
Pre-out / Main-in Yes + subwoofer / No
Power Amp Direct In Yes
Gold-Plated Cinch Yes
Speaker A / B Yes
Speaker Terminals Marantz SPKT-1+
Number of terminals 4
D-Bus Yes
Headphone Out Yes
Other
Linear Drive Power Supply Yes
Linear volume control Yes
Schottky diodes Yes
Input buffer amp (all inputs / CD only) No / Yes
Solid Heat Sinks Yes
System block shielding: Copper / metal / none No / No / Yes
Double Layer Bottom Plate Triple
Low Noise OLED display Yes
Source Direct Yes
Power Amp direct Yes
Streaming Services
Power Output (8 / 4 Ω RMS) 70W / 100W
Frequency Response 5 Hz–10 kHz
Total Harmonic Distortion 0.02 %
Damping Factor 100
Input Sensitivity: MM 1.4mV / 47 kΩ
Signal to Noise Ratio: MM/MC 87 dB / No
Input Sensitivity: High level 185 mV / 16 kΩ
Signal to Noise Ratio: High level 116 dB (2V input)
Input Sensitivity: Power Amp Direct In 1.5V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct In 125 dB
Treble Control ± 10 dB at 15 kHz
Bass Control ± 10 dB at 50 Hz
General
Available colors Black, Silver-Gold
Metal Front Panel Yes
Power Consumption 220W
Standby Consumption 0.3W
Auto Power off Yes
Detachable Power Cable Yes
Remote Control RC003PMND
System Remote Function Yes
Maximum Dimensions (W × D × H) 442 × 431 × 130 mm
Weight 14.2 kg
Carton Maximum Dimensions (W × D × H) 527 × 517 × 255 mm
Carton Weight (incl. product) 17.5 kg
