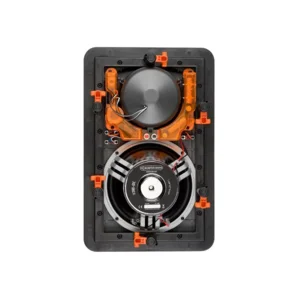

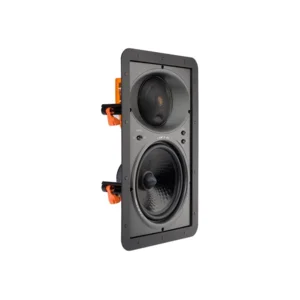

Monitor Audio Core W380-IDC

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.

Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Frequency Response
45 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
150 W

Recommended Amplifier Requirements
40 – 150 W

Drive Unit Complement
8" C-CAM cone bass driver featuring RST, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16")

Overall Depth (Including Grille)
104 mm (41/8")

Mounting Depth
100 mm (315/16")

Cut-Out Hole Diameter
387 x 234 mm (151/4 x 93/16")

Fixing Type
6 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
4.1 kg (9 lb)

Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)

Back Box
WCBOX-L

Sold As
Single Unit
