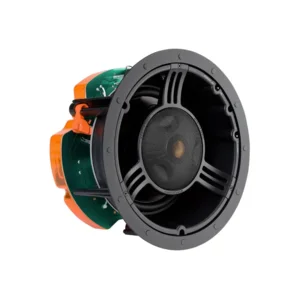

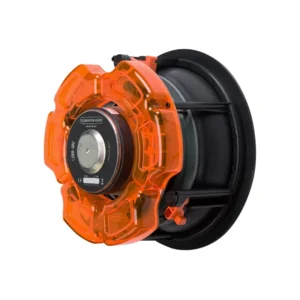

Monitor Audio Core C280-IDC

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

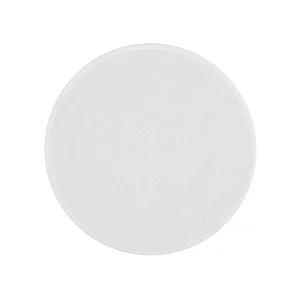

Optional square grille can be used with this model.

Frequency Response
50 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8” C-CAM cone bass driver, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)
285 mm (111/4")

Overall Depth (Including Grille)
161 mm (65/16")

Mounting Depth
157 mm (63/16")

Cut-Out Hole Diameter
247 mm (93/4")

Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.42 kg (7 lb 8 oz)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CMBOX-R
