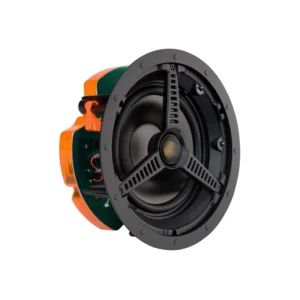

Monitor Audio Core C280

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.

Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

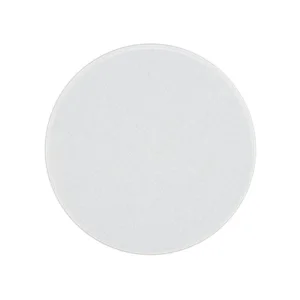

Optional square grille can be used with this model.

Frequency Response
50 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)
285 mm (111/4")

Overall Depth (Including Grille)
126 mm (415/16")

Mounting Depth
122 mm (413/16")

Cut-Out Hole Diameter
247 mm (93/4")

Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.8 kg (6 lb 2 oz)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CCBOX-R / CMBOX-R
