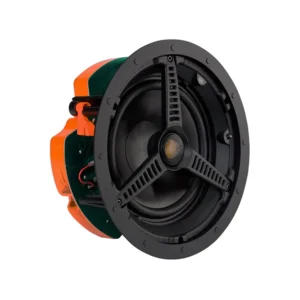

Monitor Audio Core C180

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

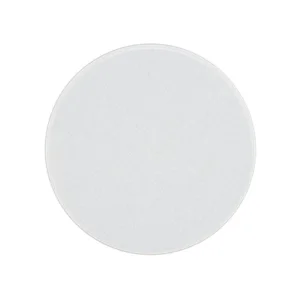

Optional square grille can be used with this model.

Frequency Response
50 Hz – 25 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)
285 mm (111/4")

Overall Depth (Including Grille)
126 mm (415/16")

Mounting Depth
122 mm (413/16")

Cut-Out Hole Diameter
247 mm (93/4")

Fixing Type
3 position Tri-Grip dog fixings

Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.72 kg (6 lb)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CCBOX-R / CMBOX-R
